Design properties of aluminium

Learn about the practical applications of useful properties of aluminium. Among many other important properties, the most useful properties of aluminium are the following:

• Corrosion resistance
• Thermal conductivity
• Specific Heat Capacity
• Electrical properties
• Specific strength
• Cold resistance
• Processibility
• Joinability
• Recyclability

Corrosion resistance

• The thin natural oxide film is firmly “bonded” to the base metal.
• This provides many aluminum alloys with the property of significant resistance to corrosion in many atmospheric and chemical environments.
• The alloys of the 1xxx, 3xxx, 5xxx and 6xxx series are especially noted in this (Figure 1).

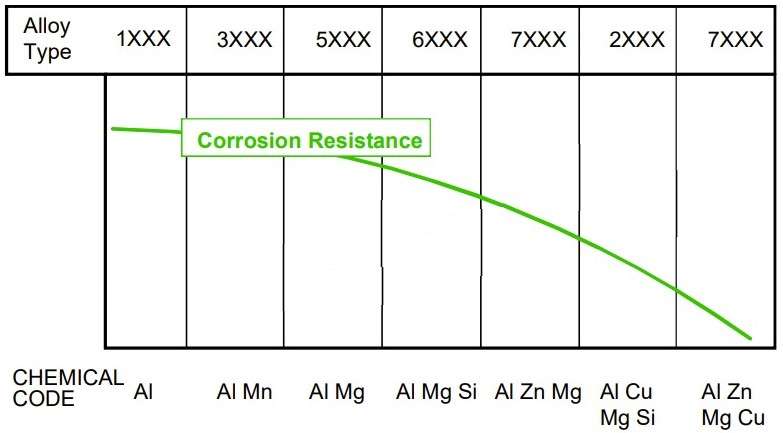

Figure 1 – The effects of alloying elements of aluminium alloys
on their corrosion resistance [1]

Thermal conductivity

• Aluminum and aluminum alloys are good heat conductors.
• Thermal conductivity of aluminium is more than four times higher in aluminum alloys than in carbon steels.
• Aluminium has a high thermal conductivity, which means it can quickly transfer heat from one area to another.
• This property makes it suitable for applications where heat needs to be dissipated efficiently, such as in heat sinks or automotive radiators [5].

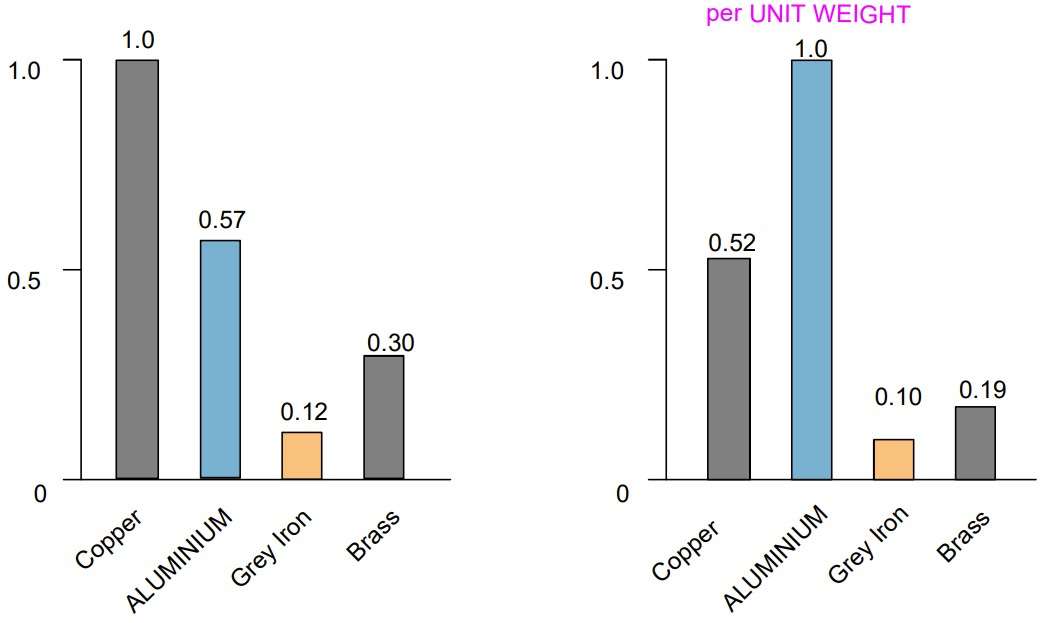

Figure 2 – Thermal conductivity of aluminum compared with other metals [1]

Electrical properties

• Pure aluminium and some of its alloys have very high electrical conductivity, second only to copper among metals used as conductors of electricity.
• Almost all high-voltage power lines use aluminium wires.
• They have a larger cross-section than equivalent copper wires, but also have half the weight.
• This allows to install supports less frequently and reduce their height (Figure 3).

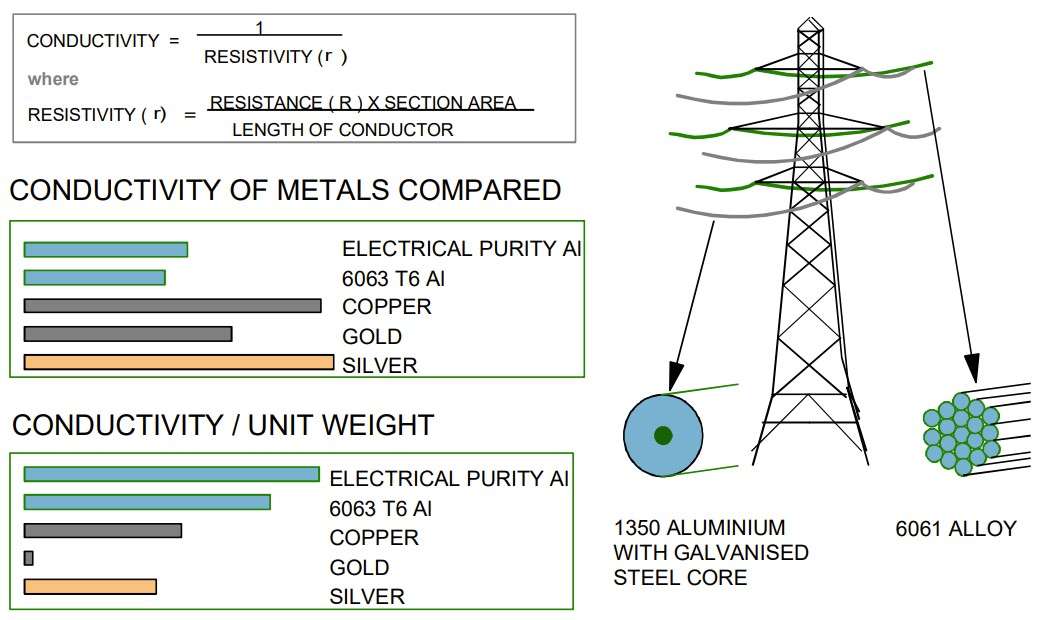

Figure 3 – Electrical properties of aluminium [1]

Specific strength

• Aluminium have high ratio of volume per unit weight (Figure 4). This ensures a high strength/weight ratio. This unit  is called specific strength.
• It opens up many opportunities for replacing heavier metals without losing (or perhaps increasing) the load-bearing capacity of a product or part.
• This is the one of most useful properties of aluminium. Combined with good corrosion resistance, this propertiy ensures the widespread use in transport engineering (airplanes, cars, passenger cars).

Figure 4 – Volume per unit weight of aluminium compared to other metals [1]

Cold resistance

• Aluminium alloys, especially the 3xxx, 5xxx and 6xxx series alloys, are ideal for low temperature applications.
• Numerous data confirm that their plasticity and viscosity, as well as strength, are higher at low temperatures, down to absolute zero, than at “room” temperature.

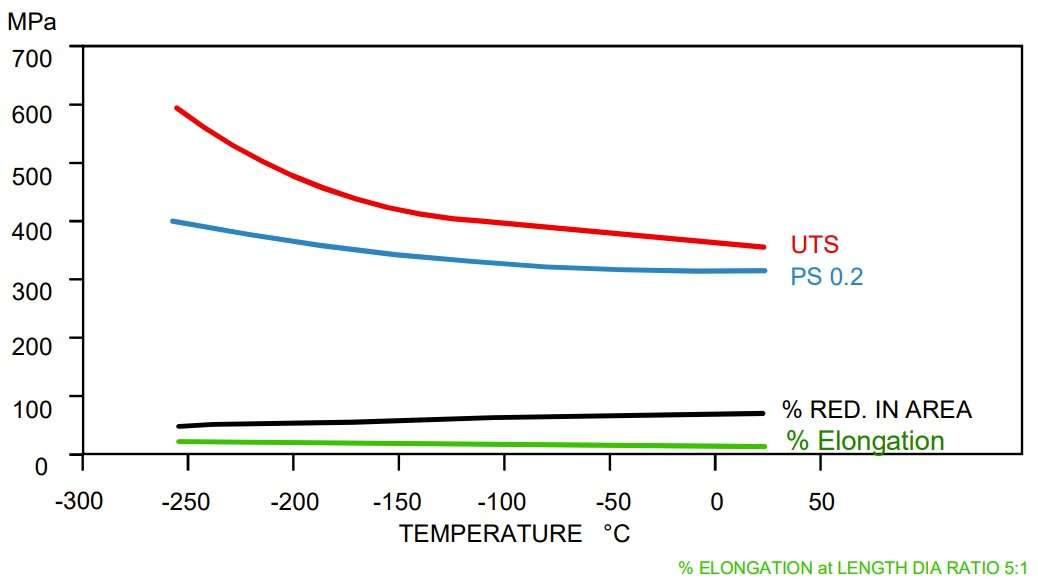

Figure 5 – Strength properties of aluminum alloy 6061,
heat treated, artificially aged  [1]

Processibility

• Aluminium alloys are easily machined by most known metalworking technologies and are particularly easy to extrude.
• Extrusion is the process of pressing heated metal through a matrix, forming profiles with a complex cross section.
• This usuful property of aluminum alloys makes it possible to produce extruded profiles from them with an almost unlimited variety of cross-sectional shapes.
• This allows the metal to be placed in those places and in such a way as to provide the profile with maximum load-bearing capacity under the influence of specified loads.

Figure 6 – Aluminium production processes [4]

Jointability

• Parts made of aluminum alloys are connected using a large number of methods, including welding, soldering, riveting, screw connections, not to mention a wide variety of mechanical methods (Figure 7).
• Welding aluminum may seem difficult for those who only have experience with steels and try to transfer that experience to aluminum.

Figure 7 – Comparison of Properties of
Different Joining Technologies [3]

Recyclability

• One of the most useful properties of aluminium is that its  life cycle is almost completely closed. Aluminium can be easily recycled and processed into almost the same high-quality products.

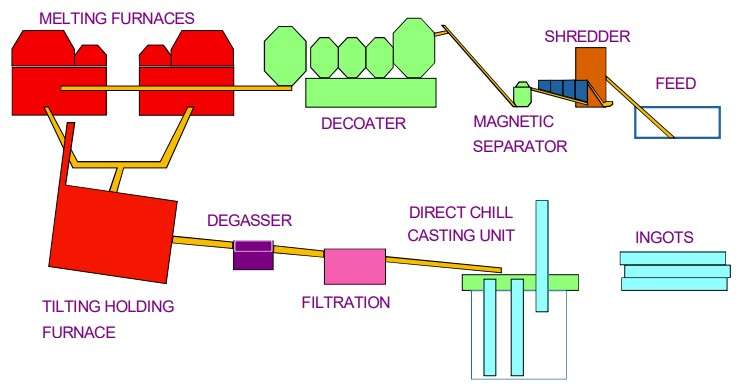

Figure 8 – A line for recycling used aluminium cans
into ingots for rolling thin sheets to make new cans [2]
